Ortofon: OM 3E

MM Pickup

NOK495,00 inkl. mva.

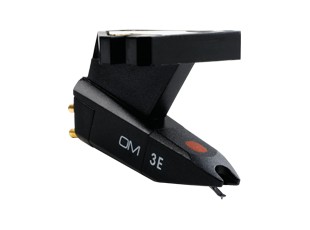

Ortofon OM 3E magnetic cartridge

The OM 3E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.

Technical data
Output voltage at 1000 Hz, 5cm/sec. 4 mV
Channel balance at 1 kHz 2 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-22.000 Hz
Frequency response 20-18.000 Hz +2/-3 dB
Tracking ability at 315Hz at recommended tracking force *) 60 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1,5-2,0 g (15-20 mN)
Tracking force, recommended 1,75 g (17,5 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pF
Cartridge colour, body/stylus Black/Black
Cartridge weight 5 g
Replacement stylus unit Stylus 3 E
