Ortofon: 2M Blue

MM Pickup

NOK2 195,00 inkl. mva.

Produktinfo

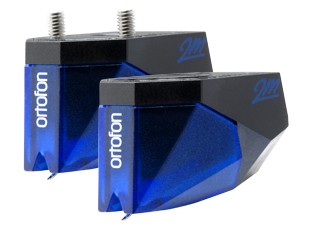

Ortofon 2M Blue, 2M Blue Verso and 2M Blue PnP


The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design of 2M series for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.


The 2M Blue Series features:
•an improved engine, which provides an increased output of 5.5mV
•Nude Elliptical diamond and split pole pins with a copper wire


The 2M Blue Verso model is an alternative product for bottom mount tonearms

To find the recommended Ortofon replacement cartridge for your turmtable/tonearm please visit our Replacement cartridges selector ».


2M Blue Plug and Play model

The new 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!


Technical data 2M Blue / 2M Blue Verso

Output voltage at 1000 Hz, 5cm/sec. 5,5 mV
Channel balance at 1 kHz 1,5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1,6-2,0g (16-20 mN)
Tracking force, recommended 1,8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1,3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Blue
Cartridge weight 7,2 g
Replacement stylus unit 2M Blue (interchangeable with 2M Red)
Stylus protection guard 2M Blue
