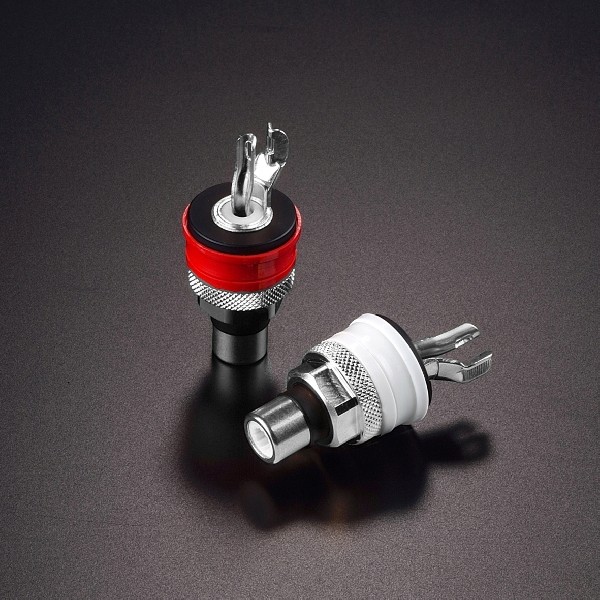

Furutech: FP-901(R)

Artikkelnr.: 4582237531886

Chassiskontakter RCA (Sett à 2 stk )

NOK1 025,00 inkl. mva.
På lager: 6 stk.

Produktinfo

•Positive/Hot Center Pin: Milled from a single piece of pure copper α (Alpha) conductor with phosphor bronze locking ring
•Negative/Cold Conductor: Milled from a single piece of pure copper α (Alpha) conductor
•Non-magnetic rhodium-plated materials
•Eutectic brass housing (painted black) and 24k gold-plated nut cap
•Mounting Materials: Nylon (red or white /outer) and PETF Teflon (white/inner) insulation
•Mounting Insulation accommodates chassis panels of any thickness
•Connection Type: Soldered



Dimensions:
•Housing---16± 0.1mm diameter X19.5mm± 0.1mm (Black),
•Mounting Insulation set--- Nylon(Red, White)17.3± 0.1mm diameter X 7.3mm± 0.1mm thick,
39.0mm± 0.1mm overall length.
