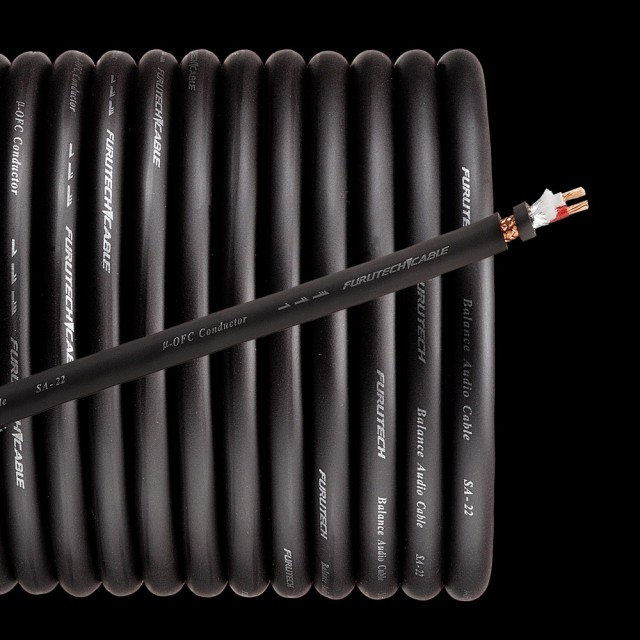

Furutech: SA-22

Artikkelnr.: SA-22

Selges i nettbutikken fra 10cm t.o.m. 10,9m. Lengder over dette eller avvikende fra dette: TA KONTAKT. Pris pr meter: Kr 249,00

NOK0,00 inkl. mva.
  • Produktinfo
  • TEKNISKE SPESIFIKASJONER

TILBEHØR :  Se under GJØR DET SELV ( DIY )

TILBEHØR Se: Overtrekkstrømpe - Krympeslange - Crimp-hylser

13 AWG α(Alpha)Conductor(3.05 sq.mm)


*α(Alpha)-Conductor---The fine PCOCC Conductor wire are treated with the α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment)

* Conductor:α(Alpha)conductor(6 ×20/0.18mm(PE into the center))
* Insulation:Foamed Irradiated PE (White × Red)
* Sheath:Flexible PVC(Purple red)
* Overall Diameter:13.0 mm (12 AWG) / (3.05 sq.mm)

* Conductor : μ -OFC Conductor(80 pcs/0.18mm)
* Insulation : Special Polyethylene (Red/ White)
* Twisting : 2 Cores with Cotton fillers twisted Together
* Shield: AL/PET tape wrap+0.12mm μ -OFC Conductor wire Braid
* Barrier Layer : Paper Tape Wrap
* Jacket: Ultra Flexible Pb free PVC (Dark Brown)
* Cable Type: Hyper Balanced
* Max. Conductor Resistance : 0.00924 Ω/ M
* Overall Diameter : 9.0 mm (14 AWG)
