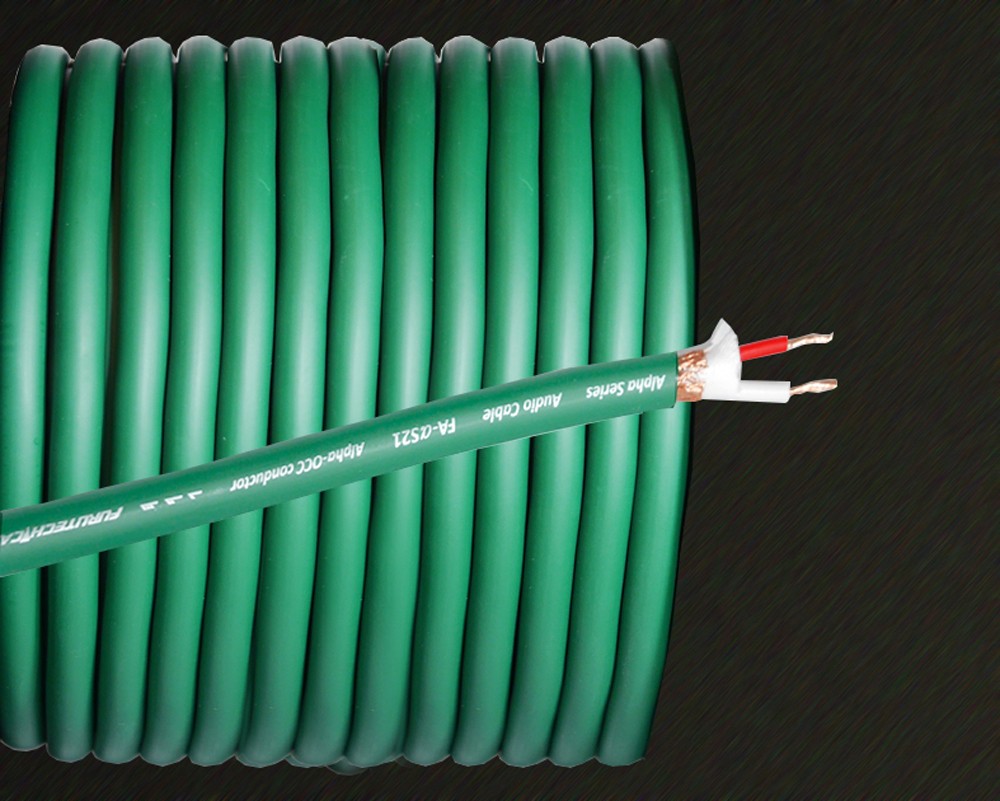

Furutech: FA-aS21

Tilbehør finnes under GJØR DET SELV (DIY)

RATING

Max. Conductor Resistance: Ω／km 24 (JISC3005 6 20℃)

Min. Insulation Resistance: MΩ‧m >100 At 1000V 20℃

CAPACITANCE: PF/M 57.4 at 1KHz

IMPEDANCE : Ω 53.22 at 10 MHz

INDUCTANCE: uH/M 2.0 at 1KHz

Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)

FEATURES

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

SPECIFICATIONS

Conductor Material: α(Alpha) OCC

Construction (pcs／mm): 30pcs / ψ0.18 mm

Insulation Material: Audio grade PP (Red, White)

Diameter: 2.46mm

Twisting Method : 2 Cores Twisted Together

Filler Material: Audio grade damping cotton

Barrier Layer Material: Stabilizer Paper Tape (Wrap)

Shield Material: ψ0.12mmα (Alpha) Conductor wire braid

Sheath Material: Audio grade Flexible PVC (Dark Green)

Nom. Thickness: 1.0mm

Overall Diameter Approx.: 8.0mm
